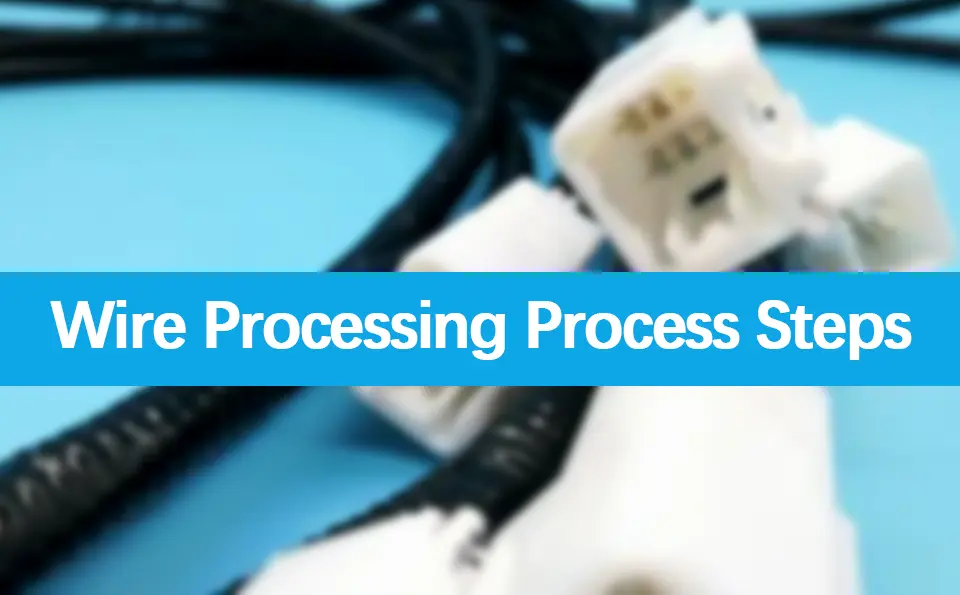

Introduction: Wire harness processing is a key manufacturing process that has a wide range of applications in various industries. The quality of execution of the steps in the wire harness processing process will have a direct impact on the performance and reliability of the final product.Huazhan Wire & Cable Co., Ltd. will be simple in this articleIt introduces the basic process steps of wire harness processing and provides readers with some practical operation suggestions.

1. Design and planning

The first step in wire harness machining is design, planning and drawing. At this stage, the designer designs and lays out the harness according to specific needs and specifications. At the same time, select suitable materials and accessories such as wires, insulating bushings, connectors, etc.

2. Material preparation

Before wire harness processing, the required materials and tools need to be prepared. Including wires, insulating sleeves, connectors, cable ties, etc. According to the design requirements, select the appropriate materials and ensure that their quality and specifications meet the requirements.

3. Cutting and stripping

Wire cutting refers to cutting the wire to a specified length by wire cutting machine or by hand according to the requirements of the process or drawing. Stripping refers to stripping the insulation of the wire, exposing the conductor part. Wire stripping is one of the key steps in wire harness processing. In the process of wire stripping, care needs to be taken to follow the correct stripping length and the specification requirements of the stripping part to avoid damage to the conductor.

4. Insulation and casing

The insulating sleeve is installed to further protect the wires from damage, and there is also a process that allows multiple wires to be bundled together as required. According to the design requirements, the insulating sleeve is sheathed over the wire or harness bellows and bundled or heat shrinkable with appropriate tools to ensure that the insulating sleeve is firmly reliable with the wire.

5. Connector installation

Connectors are installed to connect different harness sections or to connect harnesses to devices. According to the design requirements, select the appropriate connectors and install them in the appropriate locations. During the installation process, pay attention to the firmness and correctness of the connection to ensure the reliability of the connection and the good contact.

6. Harness line

After completing the above steps, the harness needs to be bundled, and there is also a process that uses an open or closed bellows to keep the harness neat and compact. Use cable ties or other cable tie tools to tie the harnesses together and ensure that the strands are properly tight enough to cause stress and damage inside the harness.

7. Quality inspection

After the wire harness is processed, a quality inspection is required. By checking the appearance of the harness, the firmness of the connection, the good contact, etc., we ensure that the quality of the wire harness processing meets the requirements. If there is a problem, repair and improve it in time.

VIII. Packaging and Delivery

According to customer needs, wire harnesses are packaged and marked to ensure safe transportation and delivery.

The above process steps can be adapted and optimized according to specific production needs to improve production efficiency and quality.

Epilogue:

Wire harness machining is a process that requires a high degree of expertise and rigorous execution. Huazhan Wire & Cable Co., Ltd. in wire harness research and development and processing for more than ten years, with rich experience in wire harness processing, weWith the right design and operating steps, the quality and performance of wire harness processing is guaranteed.Huazhan Wire & Cable Co., Ltd. provides professional wire harness R&D and processing services, alsoHope this article can beAll wire harness demanders practical operating advice to help them better process wire harnesses Customization and use。
